Fat-tire folding e-bikes used to be an expensive category for people who want power, portability and comfort in one bike. Most of them cost at least $1,000 and they were out of budget for most average consumers. Fortunately, there are many affordable choices this year; The AOSTIRMOTOR A20 is priced at around $799 and it is among the cheapest ones on the market.

Specifications & Features

Weight64 lbs
Bike Dimensions69″ x 48″
Folded Dimensions35.4″ x 27.5″
Frame6061 Lightweight Aluminum Alloy Folding Frame
MotorTruckrun Brand 500W Rear Hub Brushless Motor
Max Speed25 mph
Tires20″ x 4″ Chaoyang fat-tires
Battery36V/13Ah Lithium-ion Seat-Tube Mounted Removable Battery
Battery Range31-43.5 miles
Charge Time4-6 Hours
Charger110 – 220V
DisplayAostirmotor 866-LCD Display
Controller36V/22Ah
Drive Mode5-Level Pedal Assist System (with Speed Sensor), Half-Twist Throttle
Derailleur7-Speed Shimano Sunrace Derailleur
BrakeTektro Mechanical Disc Brakes w/ 180mm Front & 160mm Rear Rotors
ForkAluminum Alloy Rigid Fork
DerailleurSHIMANO Outer 7 speed
Handlebar Dimension31.8mm x 660mm
Stem28.6mm x 31.8mm x 110mm
LightsLED Front Headlight and Rear Reflector
Wheelbase45″
Wheel Diameter22″
Seat Height30″-34″
Standover Height25″
Weight Capacity300 lbs

Product Images

Performance

The AOSTIRMOTOR A20 is a budget fat-tire folder, so I don’t expect much from it during the test. It comes in a great condition as nothing was damaged out of the box. There are just a few minor scratches on the battery handle but it is alright. The A20 comes nearly assembled as I just needed to put the front wheel and some other small parts to start using it.

This ebike features a central folding mechanism and the handlepost also folds down to make a compact size. I love folding e-bikes because it doesn’t take much space for storage and I can transport it easily in my car trunk. It is also equipped with a metal stand so it can stand on its own after folding. The handle in the middle of the frame is very convenient as it helps me lift the bike easier. However, I don’t really like the outdated folding latch in the mid-frame as it looks ugly in unfolded position.

Although the A20 doesn’t have suspension fork, it still can absorb shocks pretty well with 20-inch fat tires. I tested it on paved, dirt, and gravel roads and was very impressed with its comfort. The 500W motor might sound underwhelming for some riders but it is more than enough for me because I mostly ride bikes on even roads. Moreover, the A20 has no problem when climbing some bridges and low inclines, even when I don’t pedal and use the twist throttle only. The bike features a 7-speed Shimano drivetrain but I rarely touch it; I often set it at speed 4 or 5 and then the pedal assistance provides enough power to deal with all terrains.

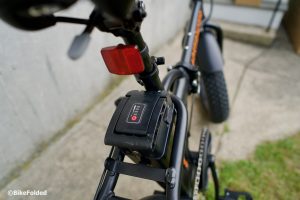

Obviously, the A20 doesn’t look like a high-end e-bike but it is good enough for most average riders. It uses good-quality components like Tektro mechanical disc brakes which provide strong stopping power. The battery is mounted right behind the seatpost and it can be easily removed for recharging; Of course, you can plug the adapter directly to the battery without removing it from the bike. The battery range is really great as it could reach over 30 miles on a single charge; Notice that I use it in pedal assistant mode most of the time. My only concern is that the battery is prone to water damages, therefore, you shouldn’t ride the bike when it’s raining.

Conclusion

Pros

  • Low price
  • Impressive battery range
  • Good-performing motor

Cons

  • Outdated design

The AOSTIRMOTOR A20 is suitable for anyone who wants a cheap and fun fat-tire bike without breaking the wallet. It doesn’t have the most powerful motor or modern design but it performs well as expected. We at BikeFolded think this is a great value and totally recommend it.

Buy AOSTIRMOTOR A20 Folding E-Bike on Amazon

Disclosure: I might earn commission from qualifying purchases. We use the commission to maintain the website, buy new products and create content for free, so thank you!

REVIEW OVERVIEW
Design & Build Quality
7
Battery
9
Riding Experience
8.5
Portability
7
aostirmotor-a20-fat-tire-folding-electric-bike-reviewBest value for money fat-tire e-bike.
